Dethleffs
www.dethleffs.de
The Dethleffs owners' club www.dethleffsowners.co.uk/

Back to caravan data This list was compiled from information kindly supplied by Campbells Caravans. My thanks to Campbells Caravans for their help. Correct as of March 2007.

If you have an older DETHLEFFS and you know any details of your caravan, please mail Chris with any details.

2004 models.-- Camper DL
2005 models.-- Camper DL
2006 models.-- Camper DL
2007 models.-- Camper DL-- Rally Nomad

a YL

Top

Camper DL series 2005

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

470 2 1145 155 1300 5.27 6.30 935 B

520 5 1270 130 1400 6.02 7.30 1010 LL

530 4 1270 130 1400 6.02 7.30 1010 H

540 4 1270 130 1400 6.02 7.30 1010 S

550 4 1270 130 1400 6.02 7.30 1010 Y

550 L 4 1270 130 1400 6.02 7.30 1010 YL

Top

Camper DL series 2006

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

470 2 1195 155 1350 4.65 6.30 935 B

520 5 1320 180 1500 5.40 7.30 1010 LL

530 4 1320 180 1500 5.40 7.30 1010 H

540 4 1320 180 1500 5.40 7.30 1010 S

550 L 4 1320 180 1500 5.40 7.30 1010 YL

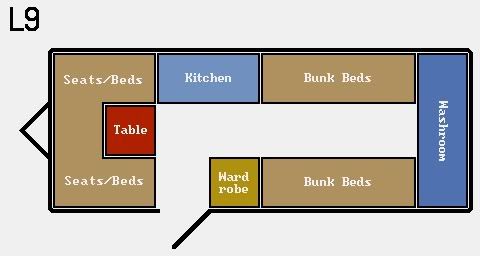

640 4 TBA TBA TBA 6.30 8.31 TBA L9

Top

Camper DL series 2007

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

470 2 1215 135 1350 4.65 6.30 935 Y1

520 5 1350 150 1500 5.40 7.30 1010 N1

530 4 1350 150 1500 5.40 7.30 1010 A2

540 4 1350 150 1500 5.40 7.30 1010 W3

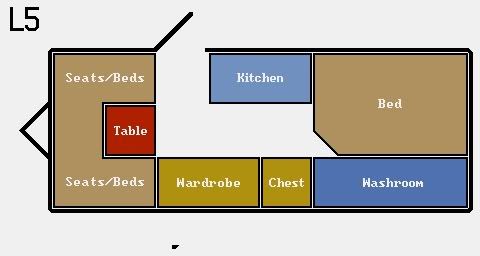

550 L 4 1350 150 1500 5.40 7.30 1010 L5

640 4 1700 300 2000 6.30 8.31 1114 L9

Top

Rally Nomad 2007

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

470 2 1245 105 1350 4.65 6.30 935 Y1

520 5 1380 120 1500 5.40 7.30 1010 N1

530 4 1380 120 1500 5.40 7.30 1010 A2

540 4 1380 120 1500 5.40 7.30 1010 W3

550 L 4 1380 120 1500 5.40 7.30 1010 L5

640 4 1730 270 2000 6.30 8.31 1114 L9

Top-- Back to caravan data
©2003 Clicreports.co.uk All Rights Reserved
Be advised that these reports and the contents of this site remain the property of the authors and should not be copied or reproduced without prior consent.

Models	Berths	MIRO kg	Payload kg	MTPLM kg	Internal Length metres	Shipping Length metres	Awning size cm's	Layout code
DL 470	2	1144	156	1300	4.65	n/a	n/a	B
DL 540	4	1269	131	1400	5.40	n/a	n/a	S
DL 550 L	4	1269	131	1400	5.40	n/a	n/a	YL

Top Camper DL series 2004 Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code DL 470 2 1144 156 1300 4.65 n/a n/a B DL 540 4 1269 131 1400 5.40 n/a n/a S DL 550 L 4 1269 131 1400 5.40 n/a n/a YL

Top

Camper DL series 2004

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

DL 470 2 1144 156 1300 4.65 n/a n/a B

DL 540 4 1269 131 1400 5.40 n/a n/a S

DL 550 L 4 1269 131 1400 5.40 n/a n/a YL
