This list was compiled from information kindly supplied by AMBERGATE CARAVAN CENTRE. My thanks to AMBERGATE for their help.
Correct as of April 2007.

If you have an older Fendt and you know any details of your caravan, please mail Chris with any details.

2002 Models.-- Diamant-- Platin-- Platin fixed bed-- Saphir-- Saphir fixed bed-- Topas
2006 Models.-- Diamant-- Platin-- Saphir-- Saphir fixed bed-- Topas
2007 Models.-- Diamant-- Diamant VIP-- Platin-- Saphir-- Saphir fixed bed-- Topas

Top

Diamant 2002

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

420 T 2/3 1096 104 1200 4.20 6.13 - -

510 TF 4 1326 174 1500 5.10 7.03 - -

510 TFB 4 1326 174 1500 5.10 7.03 - -

510 TG 4 1306 194 1500 5.10 7.03 - -

550 TG 4 1406 294 1700 5.60 7.52 - -

560 TF 4 1521 179 1700 5.60 7.52 - -

560 TG 4 1521 179 1700 5.60 7.52 - -

650 TF 4 1721 179 1900 6.50 8.42 - -

650 TG 4 1721 179 1900 6.50 8.42 - -

Top

Diamant 2006

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

510 TF 4 1398 302 1700 5.10 7.03 969 J9

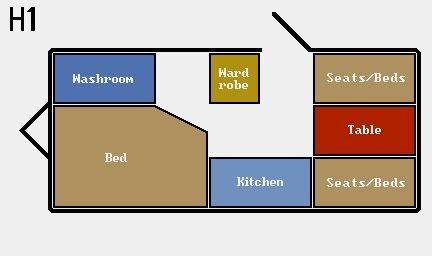

510 TFB 4 1378 322 1700 5.10 7.03 969 H1

510 TG 4 1398 302 1700 5.10 7.03 969 W2

550 TG 4 1488 212 1700 5.60 7.52 1018 P6

560 TG 4 1581 219 1800 5.60 7.52 1018 P6

560 TGC 4 1611 189 1800 5.60 7.52 1018 P6

560 WG 4 1561 239 1800 5.60 7.52 1018 T1

560 WGD 4 1561 239 1800 5.60 7.52 1018 T1

590 TF 4 1721 179 1900 5.88 7.80 1045 W1

590 TFC 4 1741 159 1900 5.88 7.80 1045 W1

650 TF 4 1801 199 2000 6.50 8.42 1107 TT

650 TFC 4 1801 199 2000 6.50 8.42 1107 TT

650 TG 4 1801 199 2000 6.50 8.42 1107 P6

650 TGC 4 1801 199 2000 6.50 8.42 1107 P6

Top

Diamant 2007

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

510 TF 4 1398 302 1700 5.10 7.03 969 J9

510 TFB 4 1398 302 1700 5.10 7.03 969 H1

510 TG 4 1398 302 1700 5.10 7.03 969 W2

520 TF 4 1438 162 1700 5.10 7.03 969 J9

520 TFB 4 1438 262 1700 5.10 7.03 969 H1

520 TG 4 1418 282 1700 5.10 7.03 969 W2

550 TG 4 1508 192 1700 5.60 7.52 1018 P6

560 TG 4 1581 219 1800 5.60 7.52 1018 P6

560 WG 4 1561 239 1800 5.60 7.52 1018 T1

560 WGD 4 1561 239 1800 5.60 7.52 1018 T1

590 TF 4 1721 179 1900 5.88 7.80 1045 W1

650 TF 4 1801 199 2000 6.50 8.42 1107 TT

650 TG 4 1801 199 2000 6.50 8.42 1107 GG

Top

Diamant VIP 2007

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

620 TF 4 1771 229 2000 6.05 7.98 1062 TT

620 TG 4 1781 219 2000 6.05 7.98 1062 GG

700 TF 4 2001 199 2200 6.91 8.84 1148 n/a

700 TG 4 2001 199 2200 6.91 8.84 1148 GG

Top

Platin 2002

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

450 Q 4 1096 104 1200 4.40 6.33 - -

510 TG 4 1256 244 1500 5.10 7.03 - -

540 TG 4 1316 184 1500 5.40 7.32 - -

550 TG 4 1356 244 1600 5.60 7.52 - -

560 TFB 4 1481 119 1600 5.60 7.52 - -

560 TG 4 1471 129 1600 5.60 7.52 - -

Top

Platin 2006

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

470 TFB 4 1208 292 1500 4.65 6.58 924 H1

510 TF 4 1318 282 1600 5.10 7.03 969 W1

510 TFB 4 1298 302 1600 5.10 7.03 969 H1

510 TG 4 1298 302 1600 5.10 7.03 969 W2

540 TG 4 1368 132 1500 5.40 7.32 998 P6

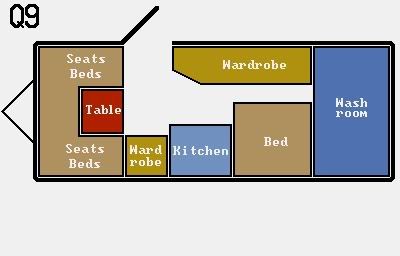

650 TFD 4 1751 149 1900 6.50 8.42 1107 Q9

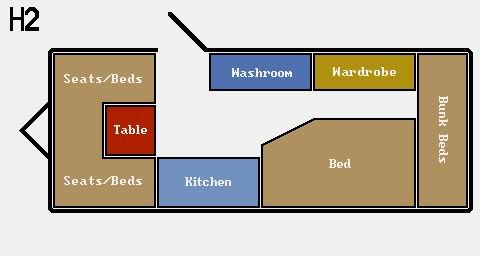

650 TFK 6 1761 139 1900 6.50 8.42 1107 H2

Top

Platin 2007

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

470 TFB 4 1228 222 1500 4.65 6.58 924 H1

510 TF 4 1318 282 1600 5.10 7.03 969 W1

510 TFB 4 1318 282 1600 5.10 7.03 969 H1

510 TG 4 1318 282 1600 5.10 7.03 969 W2

540 TG 4 1368 132 1500 5.40 7.32 998 P6

650 TFD 4 1761 139 1900 6.50 8.42 1107 Q9

650 TFK 6 1751 149 1900 6.50 8.42 1107 H2

Top

Platin (fixed bed) 2000

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

450 QB 4 1096 104 1200 4.40 6.33 - -

470 TFB 4 1166 194 1360 4.65 6.58 - -

490 TF 4 1196 164 1360 4.90 6.85 - -

510 TF 4 1276 224 1500 5.10 7.03 - -

510 TFB 4 1276 224 1500 5.10 7.03 - -

550 TF 4 1376 224 1600 5.60 7.52 - -

560 TRF 4 1451 149 1600 5.60 7.52 - -

650 TMF 4 1691 209 1900 6.50 8.42 - -

Top

Saphir 2002

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

410 Q 3 981 119 1100 4.00 5.93 859 C

410 QK 4 996 104 1100 4.00 5.93 859 C

420 Q 4 1006 194 1200 4.20 6.13 879 J

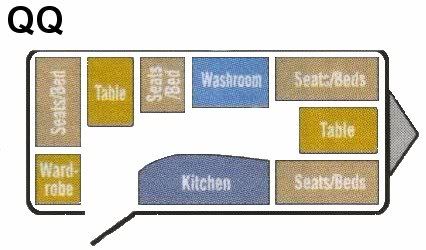

450 Q 4 1076 124 1200 4.40 6.33 899 QQ

490 Q 4 1126 234 1360 4.90 6.85 950 D

490 TKM 5 1156 204 1360 4.90 6.85 950 X

540 TKM 5 1256 244 1500 5.40 7.32 998 -

540 TK 5 1266 234 1500 5.40 7.32 998 TT

Top

Saphir 2006

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

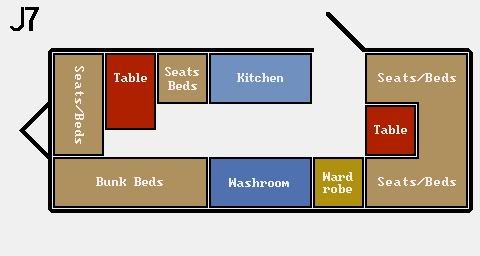

410 Q 3 1008 92 1100 4.00 5.93 859 J7

410 QK 4 1028 72 1100 4.00 5.93 859 O1

420 Q 4 1038 162 1200 4.20 6.13 879 V5

450 Q 4 1088 112 1200 4.40 6.33 899 QQ

470 TKD 4 1156 204 1360 4.65 6.58 924 S7

490 Q 4 1126 234 1360 4.90 6.85 950 J7

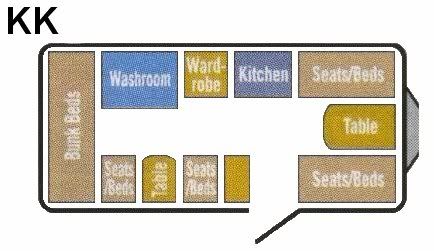

490 TKM 5 1156 204 1360 4.90 6.85 950 KK

510 TG 4 1600 352 1248 5.10 7.03 969 GG

510 TK 5 1600 352 1248 5.10 7.03 969 P5

540 TG 4 1288 212 1500 5.40 7.32 998 P6

540 TK 5 1318 186 1500 5.40 7.32 998 O

Top

Saphir 2007

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

410 Q 3 1038 62 1100 4.00 5.93 859 J7

410 QK 4 1068 32 1100 4.00 5.93 859 O1

420 Q 4 1068 132 1200 4.20 6.13 879 V5

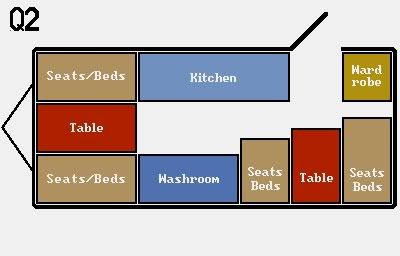

450 Q 4 1138 62 1200 4.40 6.33 899 Q2

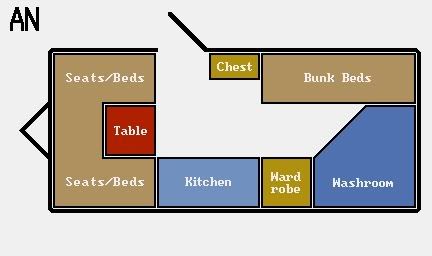

470 TKD 4 1231 129 1360 4.65 6.58 924 AN

490 Q 4 1208 292 1500 4.90 6.85 950 V8

490 TKM 5 1218 282 1500 4.90 6.85 950 KK

510 TG 4 1288 312 1600 5.10 7.03 969 GG

510 TK 5 1288 312 1600 5.10 7.03 969 P5

540 TG 4 1338 262 1600 5.40 7.32 998 P6

540 TK 5 1338 262 1600 5.40 7.32 998 O

Top

Saphir (fixed bed) 2002

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

420 QF 4 1026 174 1200 4.20 6.13 879 J

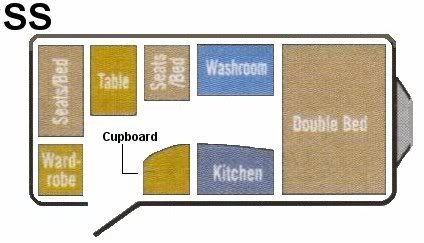

450 QB 4 1076 124 1200 4.40 6.33 899 SS

470 F 4 1106 254 1360 4.65 6.58 942 TT

470 Q 4 1106 254 1360 4.65 6.58 924 D

470 TF 4 1156 204 1360 4.65 6.58 924 Y

470 TFB 4 1156 204 1360 4.65 6.58 924 Q

490 TF 4 1136 224 1360 4.90 6.85 950 TT

550 TFK 5 1286 314 1600 5.60 7.52 1018 UU

Top

Saphir (fixed bed) 2006

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

410 QF 3 1008 92 1100 4.00 5.93 859 J9

420 QF 4 1048 152 1200 4.20 6.13 879 V6

450 QB 4 1118 82 1200 4.40 6.33 899 SS

470 TF 4 1168 332 1500 4.65 6.58 924 J9

470 TFB 4 1168 332 1500 4.65 6.58 924 H1

490 TF 4 1188 322 1500 4.90 6.85 950 TT

550 TFK 5 1328 272 1600 5.60 7.52 1018 UU

560 TFM 5 1461 139 1600 5.60 7.52 1018 UU

Top

Saphir (fixed bed) 2007

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

410 QF 3 1008 92 1100 4.00 5.93 859 n/a

420 QF 4 1048 152 1200 4.20 6.13 879 V6

450 QB 4 1118 82 1200 4.40 6.33 899 SS

470 TF 4 1168 332 1500 4.65 6.58 924 J9

470 TFB 4 1168 332 1500 4.65 6.58 924 H1

490 TF 4 1188 322 1500 4.90 6.85 950 TT

510 TFK 5 1308 292 1600 5.10 7.03 969 F8

550 TFK 5 1348 252 1600 5.60 7.52 1018 RR

560 TFK 5 1461 139 1600 5.60 7.52 1018 F8

560 TFM 5 1461 139 1600 5.60 7.52 1018 F8

Top

Topas 2002

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

510 TFB
Fixed Bed 4 1296 204 1500 5.10 7.03 - -

560 TG 4 1491 109 1600 5.60 7.52 - -

Top

Topas 2006

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

490 TF 4 1228 272 1500 4.90 6.85 950 TT

510 TFB 4 1298 302 1600 5.10 7.03 969 H1

510 TG 4 1298 302 1600 5.10 7.03 969 W2

550 TG 4 1408 192 1600 5.60 7.52 1018 P6

560 TG 4 1461 139 1600 5.60 7.52 1018 P6

560 TGC 4 1521 79 1600 5.60 7.52 1018 P6

620 WGD 4 1631 269 1900 6.05 7.98 1062 T1

Top

Topas 2007

Models Berths MIRO kg Payload kg MTPLM kg Internal Length metres Shipping Length metres Awning size cm's Layout code

490 TF 4 1228 272 1500 4.90 6.85 950 TT

510 TFB 4 1318 282 1600 5.10 7.03 969 H1

510 TG 4 1318 282 1600 5.10 7.03 969 W2

520 TFB 4 1378 222 1600 5.10 7.03 969 H1

520 TG 4 1398 202 1600 5.10 7.03 969 W2

550 TG 4 1408 192 1600 5.60 7.52 1018 P6

560 TG 4 1491 109 1600 5.60 7.52 1018 P6

620 WGD 4 1631 269 1900 6.05 7.98 1062 T1

Top-- Back to caravan data
